Teledyne FLIR PTU-D100 EX Pan-Tilt Unit
- Payloads 15lbs (std) to 25 lbs (ex)

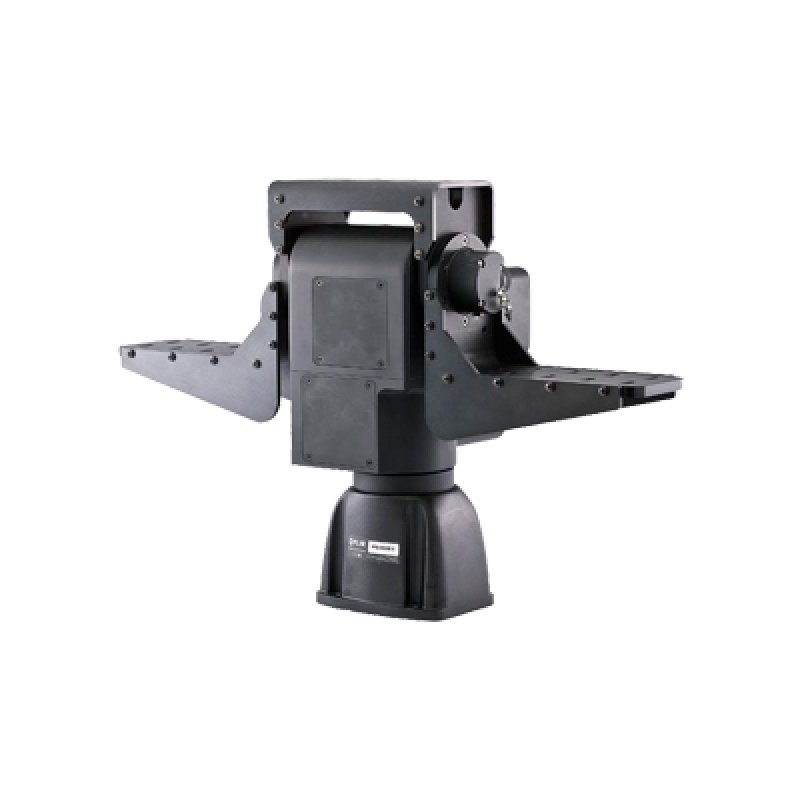

- Top or Dual side mount available
- 360-continuous pan rotation
- Tilt position resolution down to 0.0075°
- Pan/tilt speeds up to 120° / Sec.
- Small form-factor
- Wide range DC voltage input
- Ethernet, RS-232 & RS-485
- IP67 Rated
We usually have a majority of these items in stock.
Please call or contact us for availability.

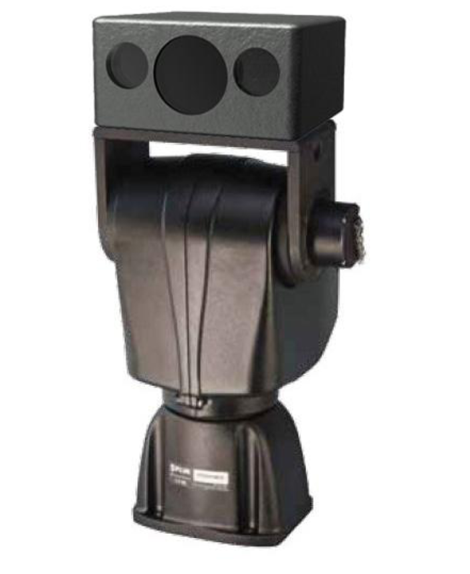

Teledyne FLIR PTU-D100E
PAN/TILT UNIT FOR SIDE-MOUNTED PAYLOADS UP TO 25 LBS
The PTU-D100 E-Series supports any type of single or multi-part payload through a flexible bracketing system of top and/or side mounting. It has been designed to be simple to integrate. The PTU-D100 E-Series is an open platform that provides the flexibility needed while minimizing your development and integration effort. It has been proven in a wide range of mission-critical applications for positioning of cameras, lasers, antennas, or other instruments in both fixed and mobile environments.
Tough, Flexible, Programmable Pan/Tilt
HIGH PERFORMANCE WITH HEFTY PAYLOADS
With payload capacity up to 25 pounds and precise positioning, D100 pan/tilts have a wide range of pan speeds for smooth, precise 360° control.
RUGGED PRECISION POINTING
Precise, real-time control of position, speed, and acceleration — plus a rigid worm gear design — provides steady positioning in windy environments and vehicle-mounted applications.
POWERFUL PERFORMANCE
With integrated Ethernet and Web interfaces, increased command rates, reduced jitter, and advanced microstep control, D100 pan/tilts provide advanced performance at affordable prices.
The PTU‐D100 E Series is well suited for the following applications:
- Mid‐ and short‐range surveillance systems
- Automated detection and tracking
- Multi‐sensor perimeter monitoring systems
- Thermal and IR cameras
- Marine/shipboard sensor systems
- Harbor and port security
- Border security & law enforcement
- Highway & transportation monitoring
- Military special operations
- Satellite communications systems
- Microwave antenna systems (passive, active)
- Robotics & computer vision
| Pan Resolution | |
|---|---|
| Tilt Resolution | |
| Input Voltage |
12-30 VDC unregulated (fastest performance and torque @ 30 VDC) |
| Power Consumption | |
| Payload Mounting | |
| Slipring | |
| Weight | |
| Interface Controls | |
| Wiring Configuration |
PL01, PL02, PL17 pass-through wiring options. 100BaseT wiring option with PL17 |
| Operating Temperature | |
| Standards | |
| ECCN Code |
