Imaging Source DMK 38GX304 GigE Monochrome Industrial Camera
$2,404.00
- ix Industrial? Ethernet Interface
- 1.1 inch Sony CMOS Pregius sensor (IMX304LQR)
- 4,096×3,000 (12.3 MP), up to 9 fps
- Global shutter
- Trigger and I/O inputs
We usually have a majority of these items in stock.
Please call or contact us for availability.

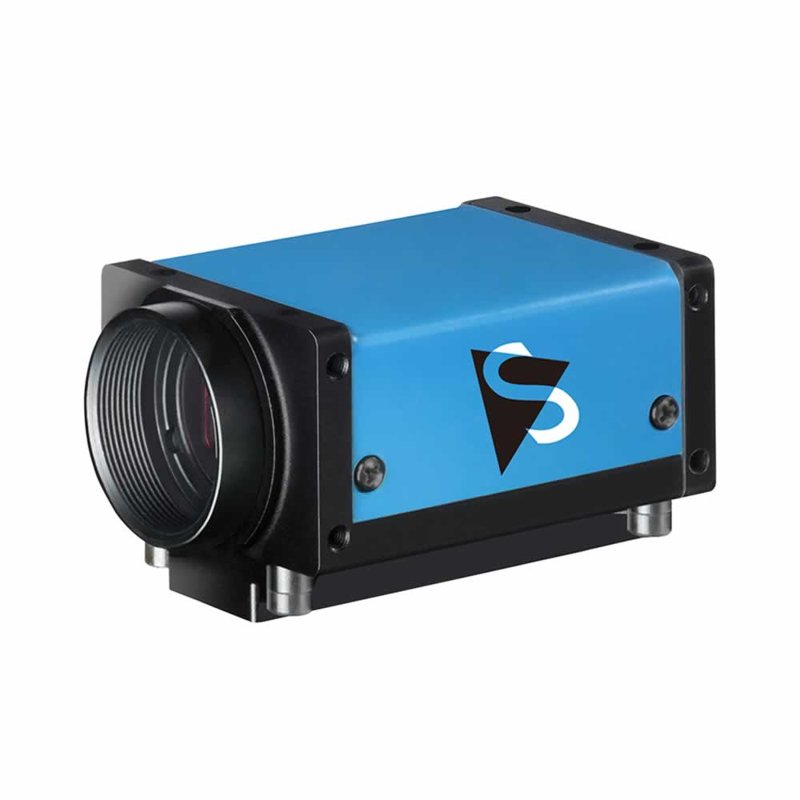

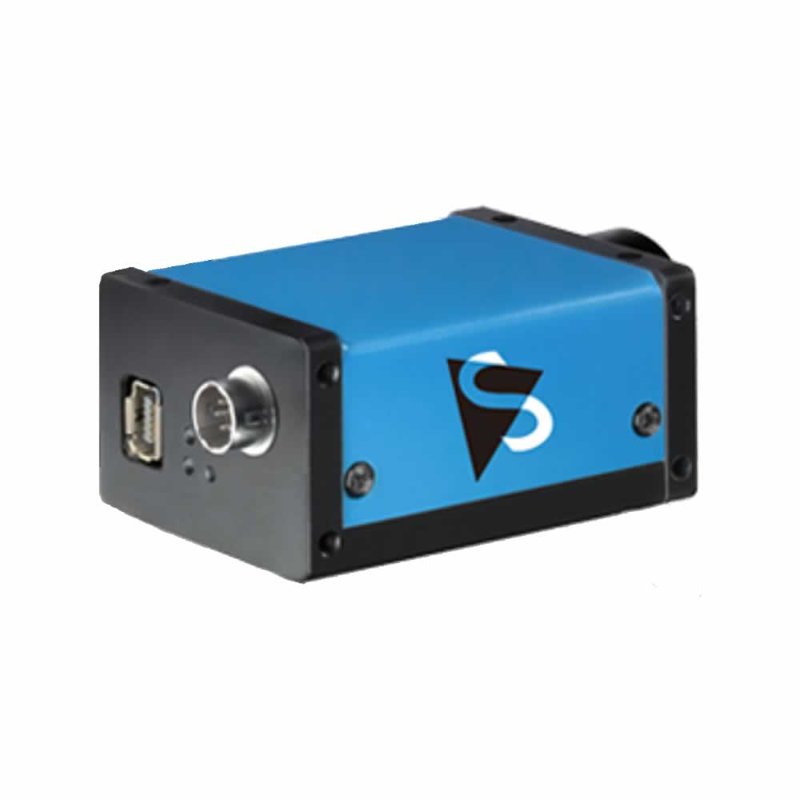

Imaging Source DMK 38GX304
GigE monochrome industrial camera
The Imaging Source DMK 38GX304 monochrome camera has a GigE interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1 inch Sony CMOS Pregius sensor (IMX304LLR) sensor. With up to 9 images per second, the DMK 38GX304 is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C mount lenses. Using the optional CS lens adapter, will make compatible to CS board lenses.
The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMK 38GX304 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.
| Dynamic Range | |
|---|---|
| Video Format | |
| IR-Cut Filter |
No |
| Sensor Type | |
| Sensor Specification |
Sony IMX304 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
12.3 MP |
| Resolution | |
| FPS |
9 FPS |
| Mono/Color |
Monochrome |
| Iris | |
| Lens Mount | |
| Interface | |
| Supply Voltage |
9 VDC to 27 VDC or POE: 48 VDC to 56 VDC |
| Current Consumption |
Approx. 400 mA @ 12 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
2 µs to 4 s |
| Gain | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
