Imaging Source DMK 33UP1300 USB 3.0 Monochrome Industrial Camera
$574.00
- 1/2 inch ON Semiconductor CMOS Python sensor (PYTHON 1300)
- 1,280x1,024 (1.3 MP), up to 168 fps
- Global shutter
- Trigger and I/O inputs
- Manufactured by The Imaging Source
We usually have a majority of these items in stock.
Please call or contact us for availability.

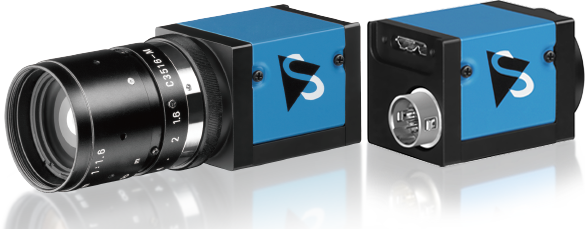

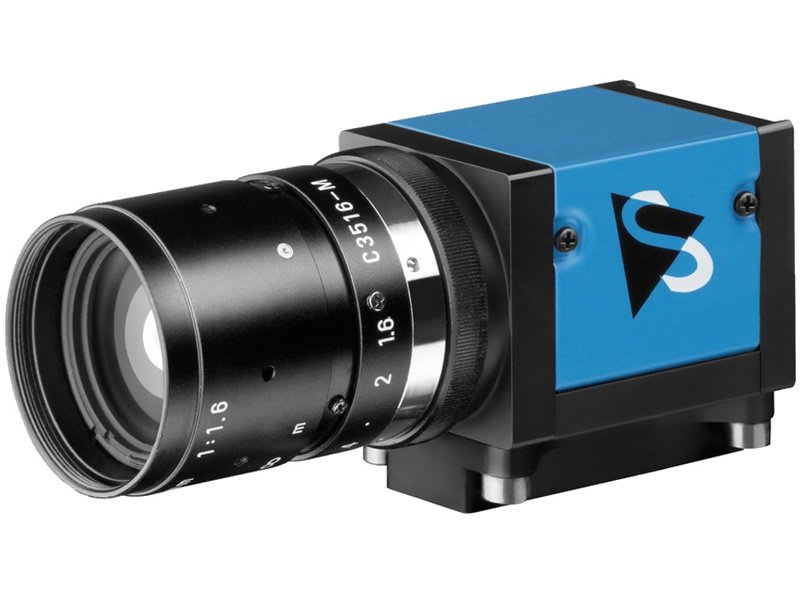

Imaging Source DMK 33UP1300
USB 3.0 Monochrome Industrial Camera
The Imaging Source DMK 33UP1300 monochrome camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/2 inch ON Semiconductor CMOS Python PYTHON 1300 sensor. With up to 168 images per second, the DMK 33UP1300 is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.
The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMK 33UP1300 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.
| Dynamic Range | |
|---|---|
| IR-Cut Filter |
No |
| Sensor Type | |
| Sensor Specification |
onsemi PYTHON 1300 |
| Shutter | |
| Pixel Size | |
| MP |
1.3 MP |
| Resolution | |
| FPS |
210 FPS |
| Mono/Color |
Monochrome |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.75 VDC to 5.25 VDC |
| Current Consumption |
Approx. 680 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
50 µs to 10 s |
| Gain | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
