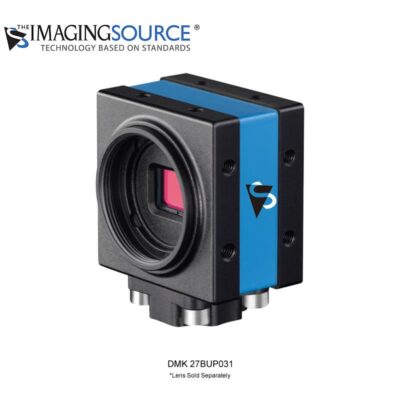

Imaging Source DMK 27BUP031 USB 3.0 Monochrome Industrial Camera
- 1/2.5 inch Aptina CMOS sensor (MT9P031)
- 2,592×1,944 (5 MP), up to 15 fps
- Rolling shutter
- Trigger and I/O inputs
- Windows and Linux software included
We usually have a majority of these items in stock.
Please call or contact us for availability.
Imaging Source DMK 27BUP031
USB 3.0 monochrome industrial camera
The Imaging Source DMK 27BUP031 USB 3.0 monochrome industrial camera is the perfect solution for many industrial automation, quality assurance, security, surveillance, and medical applications.
Utilizing a monochrome CMOS sensor up to 2592×1944 (5MP), this camera features a variety of input, output, strobe, and trigger options.
* Please note, a lens is required and sold separately
| Dynamic Range | |
|---|---|
| Video Format |
2592 × 1944 (5 MP) Y16 @ 7.5 fps, 2592 × 1944 (5 MP) Y800 @ 15 fps |
| IR-Cut Filter |
No |
| Sensor Type | |
| Sensor Specification |
onsemi MT9P031 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
5 MP |
| Resolution | |
| FPS |
15 FPS |
| Mono/Color |
Monochrome |
| Iris | |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.75 VDC to 5.25 VDC |
| Current Consumption |
Approx. 250 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
000 s to 1/4 s, 1/20 |
| Gain | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
