Imaging Source DMK 42AUC03 USB 2.0 Monochrome Industrial Camera
$217.00
- USB 2.0 Monochrome
- 1/3″ Micron CMOS
- Global Shutter
- 1280×960 Resolution
- Up to 25fps
We usually have a majority of these items in stock.
Please call or contact us for availability.

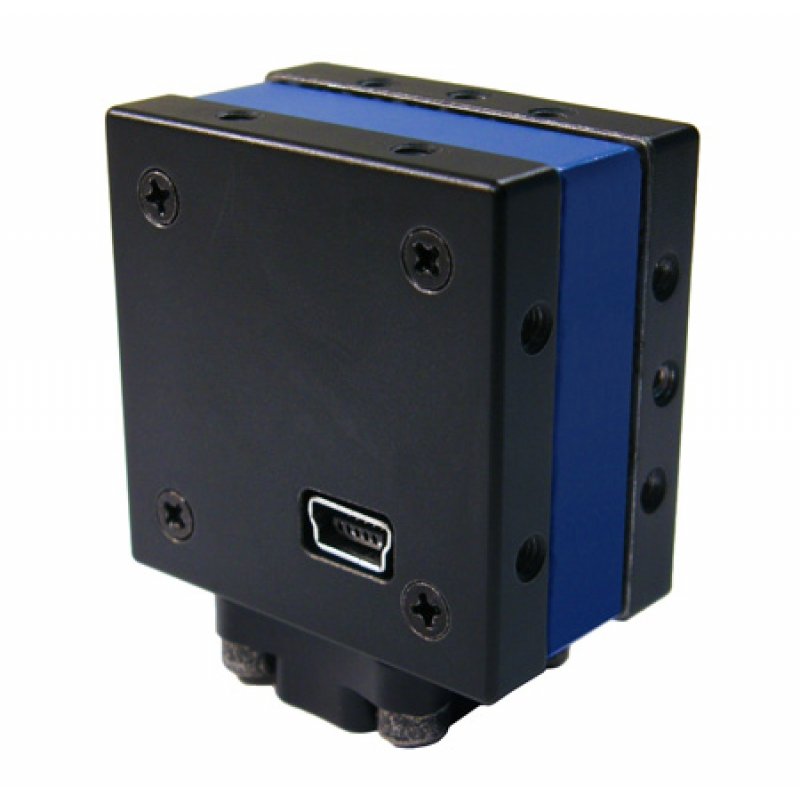

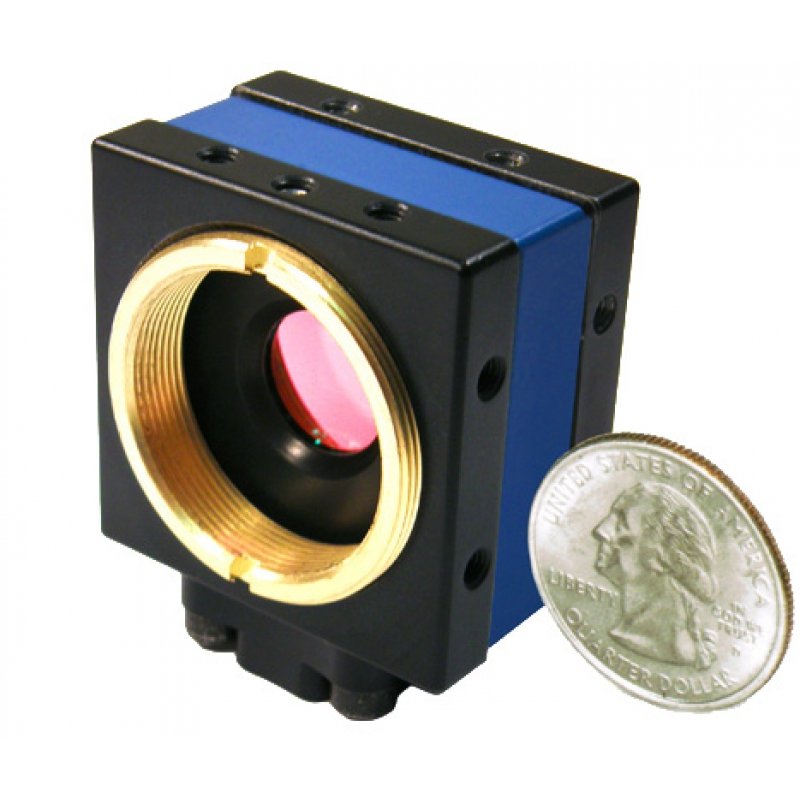

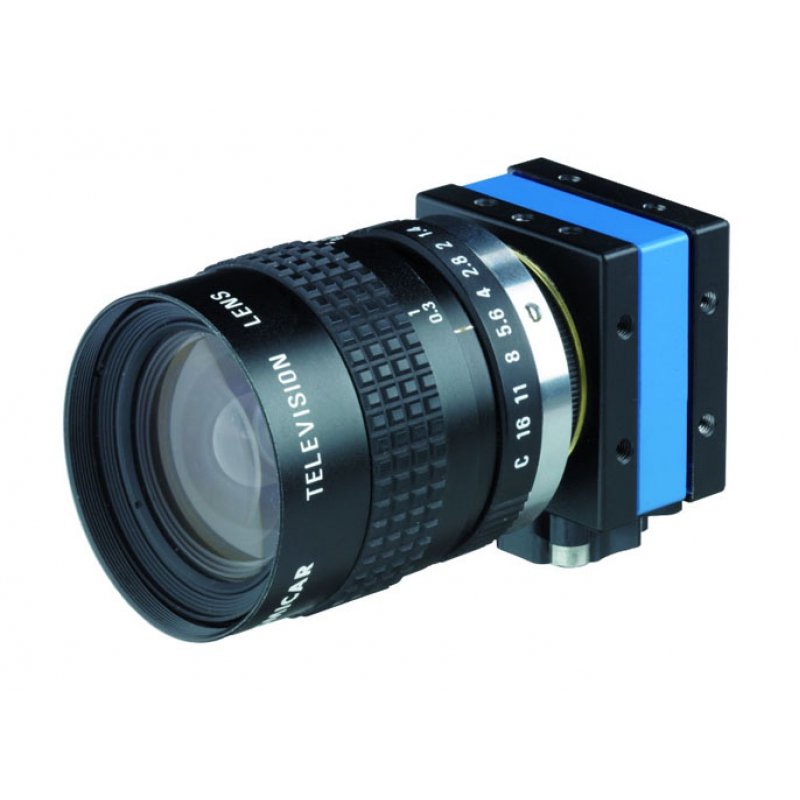

Imaging Source DMK 42AUC03
USB 2.0 Monochrome Industrial Camera
The DMK 42AUC03 monochrome camera supports multiple pixel formats with variable bits-per-pixel settings. The names of the pixel formats and the way to select them depends on the driver used to control the camera. The following table contains a short overview of all possible formats followed by a more detailed description.
- USB 2.0 Monochrome
- 1/3″ Micron CMOS
- Global Shutter
- 1280×960 Resolution
- Up to 25fps
| Video Format |
1280×960 (1.2 MP) RGB24 @ 25 fps, 1280×960 (1.2 MP) Y800 @ 25 fps |
|---|---|
| IR-Cut Filter |
No |
| Sensor Type | |
| Sensor Specification |
onsemi AR0134 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
1.2 MP |
| Resolution | |
| FPS |
25 FPS |
| Mono/Color |
Monochrome |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.5 VDC to 5.5 VDC |
| Current Consumption |
Approx. 250 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
1/10000 s to 30 s |
| Gain | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
