Imaging Source DFK 33UX290 USB 3.0 Color Industrial Camera
$516.00
- 1/2.8 inch Sony CMOS STARVIS sensor (IMX290LQ)
- 1,920x1,080 (2.1 MP), up to 143 fps
- Rolling shutter
- Trigger and I/O inputs
- Manufactured by The Imaging Source
We usually have a majority of these items in stock.
Please call or contact us for availability.

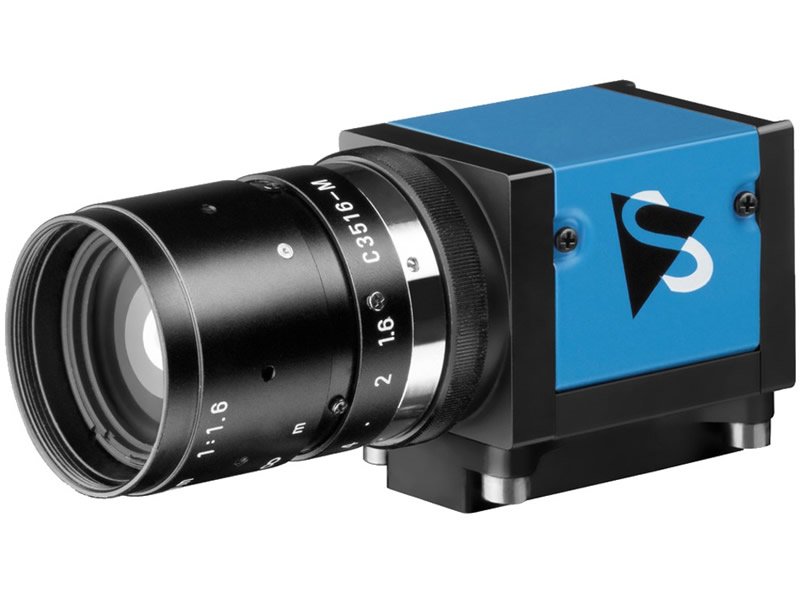

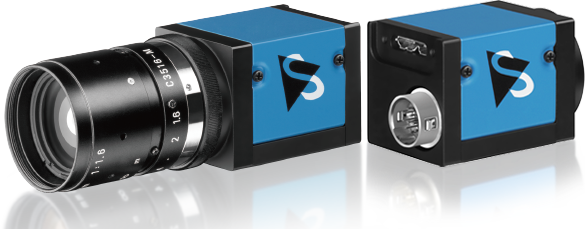

Imaging Source DFK 33UX290
USB 3.0 Color Industrial Camera
The Imaging Source DFK 33UX290 color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.8 inch Sony CMOS STARVIS IMX290LQ sensor. With up to 143 images per second, the DFK 33UX290 is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.
The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFK 33UX290 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.
| Dynamic Range | |
|---|---|
| Video Format | |
| IR-Cut Filter |
Yes |
| Sensor Type | |
| Sensor Specification |
Sony IMX290 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
2.1 MP |
| Resolution | |
| FPS |
143 FPS |
| Mono/Color |
Color |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.75 VDC to 5.25 VDC |
| Current Consumption |
Approx. 540 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
20 µs to 30 s |
| Gain | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
