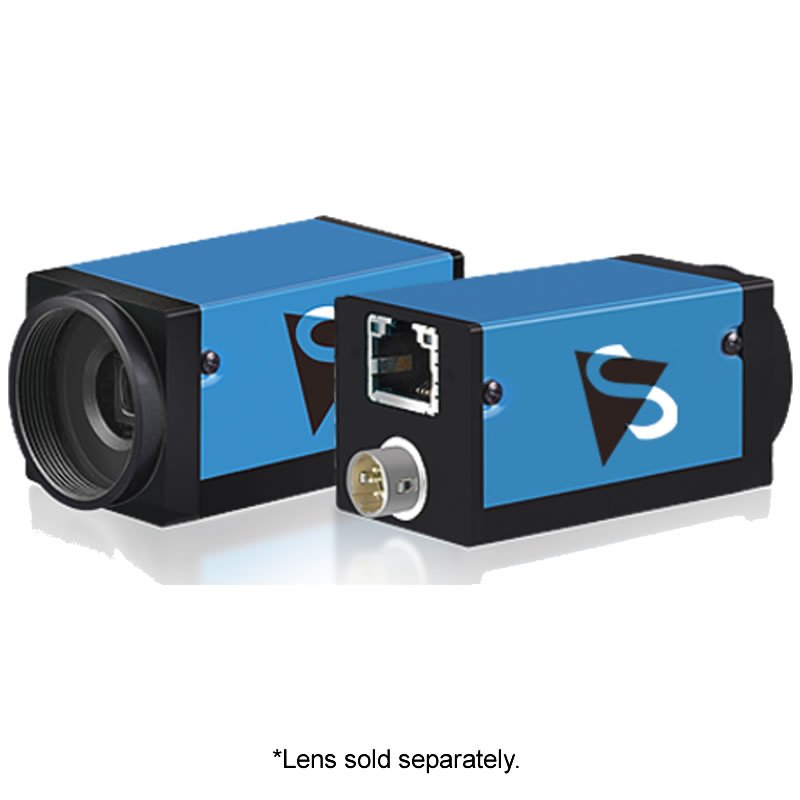

Imaging Source DFK 33GX273 GigE Color Industrial Camera
$459.00
- 1/2.9 inch Sony CMOS Pregius sensor (IMX273LQR)
- 1,440×1,080 (1.6 MP), up to 75 fps
- Global shutter
- Trigger and I/O inputs
- Casing compatible to most analog cameras
- Manufactured by The Imaging Source
- Windows and Linux software included
We usually have a majority of these items in stock.
Please call or contact us for availability.
Imaging Source DFK 33GX273
GigE color industrial camera
With an assortment of global and rolling shutter CMOS sensors to choose from as well as on-board image pre-processing and frame buffering, the DFK 33GX273 GigE camera offers a broad portfolio of ethernet cameras that are ideal for any number of machine vision applications.
A Hirose port allows for a variety of input, output, strobe and trigger options, and the Gigabit Ethernet interface enables easy setup and integration into existing and new applications.
| Dynamic Range | |
|---|---|
| Video Format | |
| IR-Cut Filter |
Yes |
| Sensor Type | |
| Sensor Specification |
Sony IMX273 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
1.6 MP |
| Resolution | |
| FPS |
75 FPS |
| Mono/Color |
Color |
| Iris | |
| Lens Mount | |
| Interface | |
| Supply Voltage |
11 VDC to 13 VDC or POE: 48 VDC to 56 VDC |
| Current Consumption |
Approx. 400 mA @ 12 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
1 µs to 30 s |
| Gain | |
| White Balance | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
