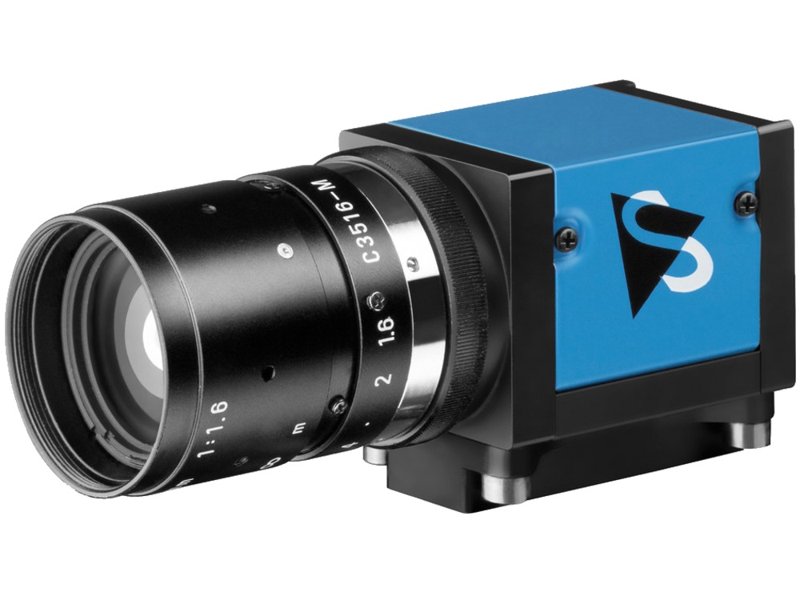

Imaging Source DFK 33UX250 USB 3.0 Color Industrial Camera
$1,264.00
- 2/3 inch Sony CMOS Pregius sensor (IMX250LQR)
- 2,448x2,048 (5 MP), up to 75 fps
- Global shutter
- Trigger and I/O inputs
- Manufactured by The Imaging Source
We usually have a majority of these items in stock.
Please call or contact us for availability.
Imaging Source DFK 33UX250
USB 3.0 Color Industrial Camera
solution for many industrial automation, quality assurance, security, surveillance and medical applications.
The monochrome camera ships with the very sensitive 2/3 inch Sony CMOS Exmor IMX250LQR sensor. With up to
75 images per second, the DFK 33UX250 is a low cost, yet highly versatile imaging solution. The camera includes a C to
CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the
camera is also compatible to M12 board lenses.
The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely
downloaded from our web site. Extensions for Microsoft Windows enable the DFK 33UX250 to be integrated in to common machine
vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software
(Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.
| Dynamic Range | |
|---|---|
| Video Format | |
| IR-Cut Filter |
Yes |
| Sensor Type | |
| Sensor Specification |
Sony IMX250 |
| Shutter | |
| Format | |
| Pixel Size | |
| MP |
5 MP |
| Resolution | |
| FPS |
75 FPS |
| Mono/Color |
Color |
| Lens Mount | |
| Interface | |
| Supply Voltage |
4.75 VDC to 5.25 VDC |
| Current Consumption |
Approx. 800 mA @ 5 VDC |
| Auto Iris Control |
No |
| Trigger | |
| I/O | |
| Dimensions (H x W x L) | |
| Mass | |
| Adjustable Shutter |
1 µs to 4 s |
| Gain | |
| Temperature (Operating) | |
| Temperature (Storage) | |
| Humidity (Operating) |
20 % to 80 % (non-condensing) |
| Humidity (Storage) |
20 % to 95 % (non-condensing) |
