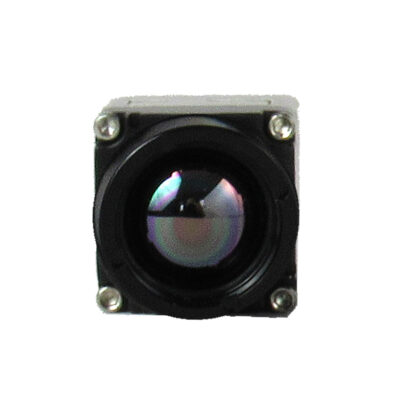

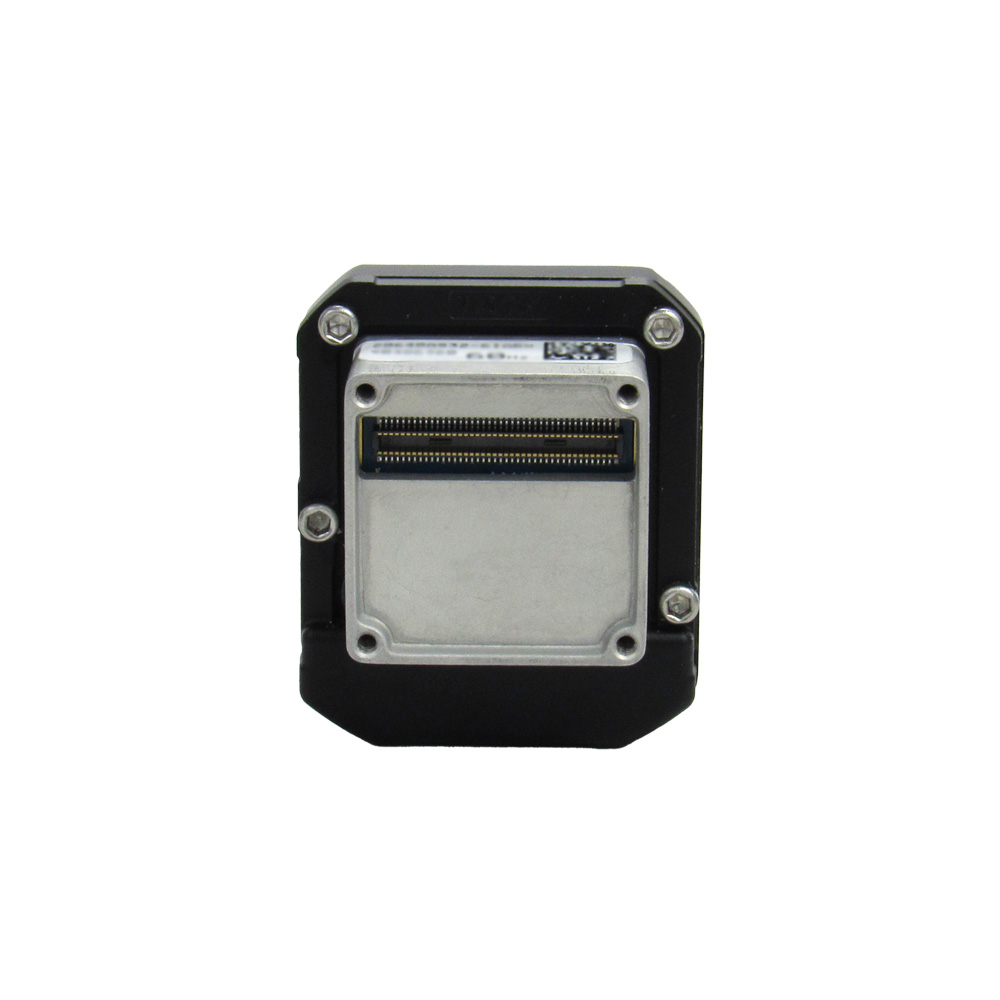

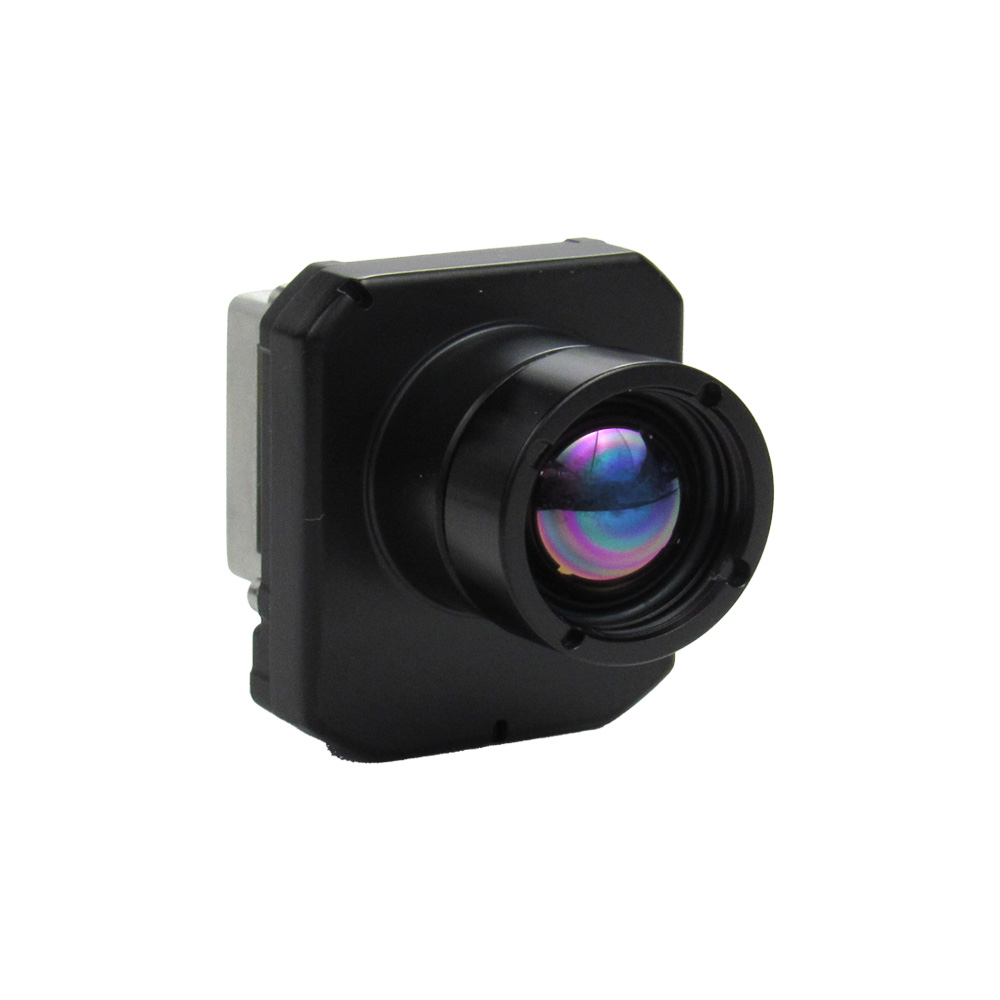

Teledyne FLIR BOSON 640 x 512 13.6mm 32° HFoV – Short Lens – Shutterless LWIR Thermal Camera Core

Resolution: 640×512 – 32° HFoV
Shutterless
Short Lens
12 µm pixel pitch VOx microbolometer
21 x 21 x 11 mm camera body
Weight as low as 7.5 grams
Low power consumption, starting at 500 mW
Rugged construction and highest temperature rating -40 °C to +80 °C

Boson Consumer Grade <60mK NEDT SKU:21640AS32-6CAAX – $4354.00
Boson Professional Grade <50mK NEDT SKU:21640AS32-6PAAX – $5375.00
Boson Industrial Grade <40mK NEDT SKU:21640AS32-6IAAX – $6400.00
Boson+ Professional Grade <30mK NEDT SKU:23640AS32-6PAAX – $5409.00
Boson+ Industrial Grade <20mK NEDT SKU:23640AS32-6IAAX – $6435.00

_{Interfaces and Accessories sold separately.}

$4,354.00 – $6,435.00

This camera is compatible with the Environmental Enclosure for the FLIR Boson.

Teledyne FLIR BOSON 640 x 512 13.6mm 32° HFoV - Short Lens - Shutterless LWIR Thermal Camera Core

Environmental Enclosure for the Teledyne FLIR Boson RHP-EN-01-6GA04

1 × Environmental Enclosure for the Teledyne FLIR Boson RHP-EN-01-6GA04

$699.00

Quantity	5 +
Price	$4,136.30 - $6,113.25

Noise Level (NEdT Value)

Frame Rate Option

resetClear

Add to Wishlist

Compare

Standard Shipping

standard shipping class

We usually have a majority of these items in stock.
Please call or contact us for availability.

Description

Specifications

Downloads

Boson+/Boson Comparison

FLIR Boson® – 13.6mm Lens

Compact Shutterless LWIR Thermal Camera

The Boson® longwave infrared (LWIR) thermal camera module sets a new standard for size, weight, power, and performance (SWaP). It utilizes FLIR infrared video processing architecture to enable advanced image processing and several industry-standard communication interfaces while keeping power consumption low. The 12 µm pitch Vanadium Oxide (VOx) uncooled detector comes in two resolutions – 640 x 512 or 320 x 256. It is available with multiple lens configurations, adding flexibility to integration programs.

With a weight as low as 7.5g and a camera body as small as 21 x 21 x 11 mm, the Boson represents an industry-leading reduction in SWaP with no reduction in performance. Advanced embedded processing and video analytics, as well as software-customizable functionality, give this small camera big capabilities, including integration with auxiliary sensors such as third-party cameras, GPS, and IMU.

DRAMATIC REDUCTION IN SIZE, WEIGHT AND POWER (SWaP) WITH NO REDUCTION IN PERFORMANCE

A full-featured VGA thermal camera module at less than 4.9 cm³.

21 x 21 x 11 mm camera body and weight as low as 7.5g.
Low power consumption, starting at 500 mW
12 µm pixel pitch VOx microbolometer with 320 and 640 resolutions.
Rugged construction and highest temperature rating -40 °C to 80 °C.

POWERFUL INFRARED VIDEO PROCESSING ARCHITECTURE

FLIR infrared video processing with embedded industry-standard interfaces empowers advanced processing and analytics.

Includes embedded algorithms for noise filters, gain control, blending, and more.
Software-customizable functionality for video processing and power dissipation requirements.
Built-in support for physical and protocol-level interface standards.

WIDE CONFIGURABILITY FOR FASTER DEVELOPMENT AND LOWER COST-TO-MARKET

Unprecedented integration flexibility for fast, affordable developments.

Customized applications through FLIR-trusted third party developers.
Mechanical/electrical compatibility across all versions.
Variety of hardware and image processing integration to fit OEM requirements.

Resolution ℹ️	640 x 512
Pixel Pitch ℹ️	12 µm
Spectral Band ℹ️	3 μm to 5 μm \| MWIR, 3.2 – 3.4 µm, 3.4 – 4.2 µm standard, 3.4 – 5.1 µm standard, 3.4 -5.0 µm, 3.4 to ≥ 4.9µm Standard, 3.4 to ≥ 4.9µm Standard, 3.4 to ≥ 5.1 µm Standard, 3.4µm – 5µm (Standard), 7 – 8.5 µm, 7.5 – 13 µm, 7.5 – 13.5 µm, 7.5 μm to 13.5 μm, 7.5–14 µm, 8–14 µm, 8–14 µm (LWIR), Longwave infrared, 8 µm to 14 µm, Longwave infrared; 7.5 µm – 14 µm, LWIR \| 7.5 µm – 13 µm, LWIR \| 7.5 µm – 13.5 µm, LWIR \| 7.5 µm – 14 µm, LWIR \| 7.5 µm to 13.5 µm, LWIR \| 8 µm – 14 µm, LWIR \| 8 µm to 14 µm
Noise Level (NEdT Value) ℹ️	Boson Consumer Grade <60 mK NEdT, Boson Professional Grade <50 mK NEdT, Boson Industrial Grade <40 mK NEdT, Boson+ Professional Grade <30 mK NEdT, Boson+ Industrial Grade <20 mK NEdT
Frame Rate Option ℹ️	<9 Hz Slow Frame Rate, 60Hz default; 30 Hz runtime selectable
Shutter ℹ️	No
Solar protection	Integral
Continuous Digital Zoom	1X to 8X zoom
Symbology	Re-writable each frame; alpha blending for translucent overlay
Radiometry	No
Scene Dynamic Range	to 140 °C (high gain) to 500 °C (low gain)
Temperature Accuracy	N/A
Field of View ℹ️	32° HFoV
Focal Length ℹ️	13.6mm
Short Lens	Yes
f-number ℹ️	f/1.0
Dimensions (L x W x H)	21 × 21 × 11 mm without lens
Weight	7.5 g without lens (configuration dependent)
Precision Mounting Holes	Four tapped M1.6×0.35 (rear cover). Lens support recommended when lens mass exceeds core mass.
Input Voltage	3.3 VDC
Power Dissipation	Varies by configuration. 320+ as low as 500 mW, 640+ as low as 1000 mW
Video Channels	CMOS or USB2
Control Channels	UART or USB
Configurable GPIO	Up to 11; user configurable
Operating Temperature Range	-40°C to 80°C
Non-Operating Temperature Range	-50 °C to 85 °C (-58 °F to 185 °F)
Shock	1, 500 g @ 0.4 msec
Operational Altitude	12 km (max altitude of a commercial airliner or airborne platform)
Boson Enclosure Compatible	Yes

IDD CAD Data Boson 640SLS - 13.6mm-f1.0

_{This IDD CAD Data package includes a comprehensive set of design resources, featuring a .STEP file and an accompanying PDF. The .STEP file provides a detailed 3D model that ensures compatibility with various CAD software, facilitating seamless integration into your projects. The PDF offers essential documentation, including specifications, dimensions, and guidelines to help you make the most of the provided CAD data. Download the zip file to access these valuable resources for your design and engineering needs.}

Download

Teledyne FLIR Boson Datasheet

Download

Boson Family Brochure

Download

Boson+
Boson

Boson Comparison	Boson+	Boson
Resolution	VGA: 640 × 512 \| QVGA: 320 × 256	VGA: 640 × 512 \| QVGA: 320 × 256
Pixel Size	12 μm	12 μm
Spectral Band	8μm - 14μm	8μm - 14μm
Thermal Sensitivity	Industrial: ≤20 mK \| Professional: ≤30 mK	Industrial: ≤40 mK \| Professional: ≤50 mK \| Consumer: ≤60 mK
Video Pipeline & Latency	AGC: Improved with deeper blacks \| Latency: <6 ms	AGC: Yes \| Latency: <25 ms
Scene Dynamic Range	High Gain: up to 150 °C \| Low Gain: up to 350 °C	High Gain: <140 °C \| Low Gain: <500 °C
Frame Rate	60Hz default; 30 Hz runtime selectable	60 Hz & 9 Hz
Radiometry Option	Yes	Yes
Low-Gain Mode Available	Yes	Yes
Shutterless Options	Yes	Yes
