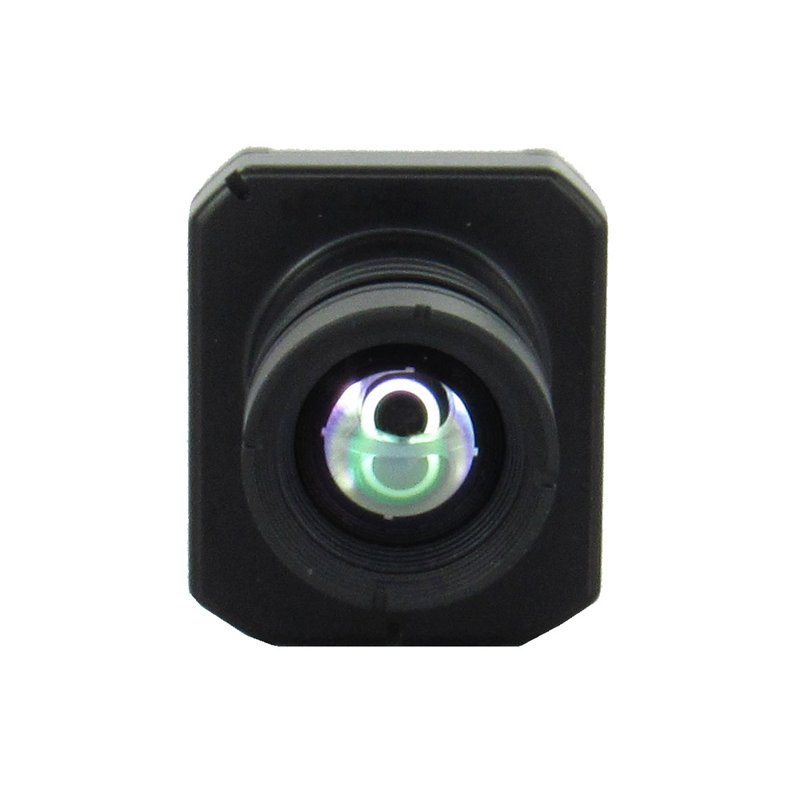

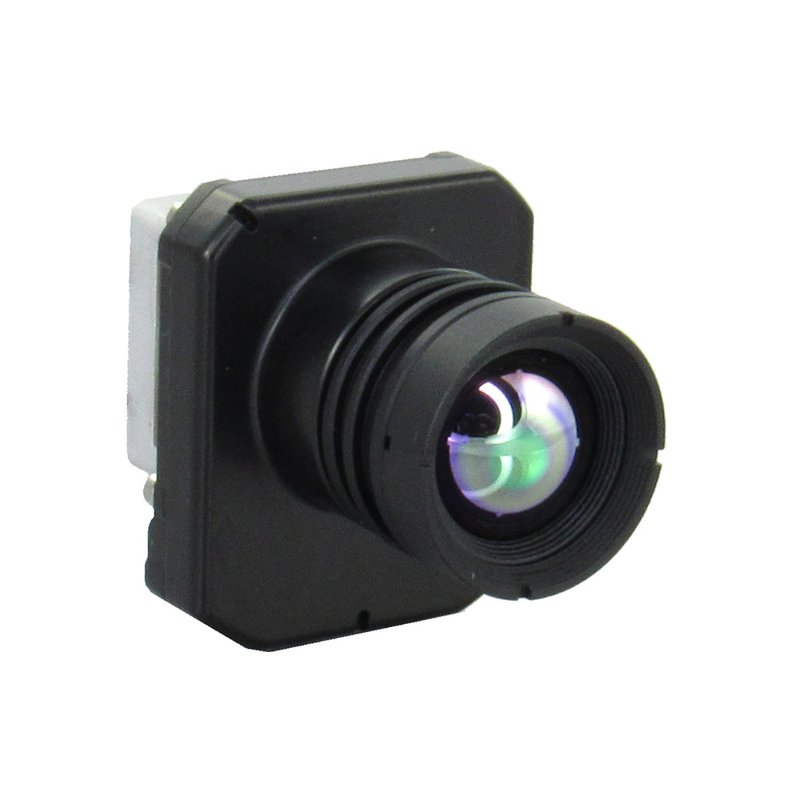

Teledyne FLIR BOSON 640 x 512 9.2mm 50° HFoV – Short Lens LWIR Thermal Camera Core
Price range: $4,354.00 through $6,400.00
- Resolution: 640×512
- 50° HFoV
- Short Lens
- 12 µm pixel pitch VOx microbolometer
- Multiple high-performance FOV options
- Dimensions with Lens: 41.16 x 29 x 34.5 mm
- Weight with lens: 34.7 grams
- Low power consumption, starting at 500 mW
- Rugged construction and highest temperature rating -40 °C to +80 °C
Boson Consumer Grade <60mK NEDT SKU:20640AS50-6CAAX – $4354.00
Boson Professional Grade <50mK NEDT SKU:20640AS50-6PAAX – $5375.00
Boson Industrial Grade <40mK NEDT SKU:20640AS50-6IAAX – $6400.00
Interfaces and Accessories sold separately.
We usually have a majority of these items in stock.
Please call or contact us for availability.
FLIR Boson – 9.2mm Short Lens
Compact LWIR Thermal Camera
The Boson® longwave infrared (LWIR) thermal camera module sets a new standard for size, weight, power, and performance (SWaP). It utilizes FLIR infrared video processing architecture to enable advanced image processing and several industry-standard communication interfaces while keeping power consumption low. The 12 µm pitch Vanadium Oxide (VOx) uncooled detector comes in two resolutions – 640 x 512 or 320 x 256. It is available with multiple lens configurations, adding flexibility to integration programs.
With a weight as low as 7.5g and a camera body as small as 21 x 21 x 11 mm, the Boson represents an industry-leading reduction in SWaP with no reduction in performance. Advanced embedded processing and video analytics, as well as software-customizable functionality, give this small camera big capabilities, including integration with auxiliary sensors such as third-party cameras, GPS, and IMU.
DRAMATIC REDUCTION IN SIZE, WEIGHT AND POWER (SWaP) WITH NO REDUCTION IN PERFORMANCE A full-featured VGA thermal camera module at less than 4.9cm3.
- 21 x 21 x 11 mm camera body and weight as low as 7.5g.
- Low power consumption, starting at 500 mW
- 12 µm pixel pitch VOx microbolometer with 320 and 640 resolutions.
- Rugged construction and highest temperature rating -40 °C to 80 °C.
POWERFUL INFRARED VIDEO PROCESSING ARCHITECTURE FLIR infrared video processing with embedded industry-standard interfaces empowers advanced processing and analytics.
- Includes embedded algorithms for noise filters, gain control, blending, and more.
- Software-customizable functionality for video processing and power dissipation requirements.
- Built-in support for physical and protocol-level interface standards.
WIDE CONFIGURABILITY FOR FASTER DEVELOPMENT AND LOWER COST-TO-MARKET Unprecedented integration flexibility for fast, affordable developments.
- Customized applications through FLIR-trusted third party developers.
- Mechanical/electrical compatibility across all versions.
- Variety of hardware and image processing integration to fit OEM requirements.
| Resolution | |
|---|---|
| Pixel Pitch | |
| Spectral Band | |
| Noise Level (NEdT Value) |
Boson Consumer Grade <60 mK NEdT, Boson Professional Grade <50 mK NEdT, Boson Industrial Grade <40 mK NEdT |
| Frame Rate Option |
<9 Hz Slow Frame Rate, 60Hz default; 30 Hz runtime selectable |
| Shutter | |
| Solar protection | |
| Continuous Digital Zoom | |
| Symbology |
Re-writable each frame; alpha blending for translucent overlay |
| Radiometry | |
| Scene Dynamic Range | |
| Temperature Accuracy | |
| Field of View | |
| Focal Length | |
| Short Lens | |
| f-number | |
| Dimensions (L x W x H) | |
| Weight | |
| Precision Mounting Holes |

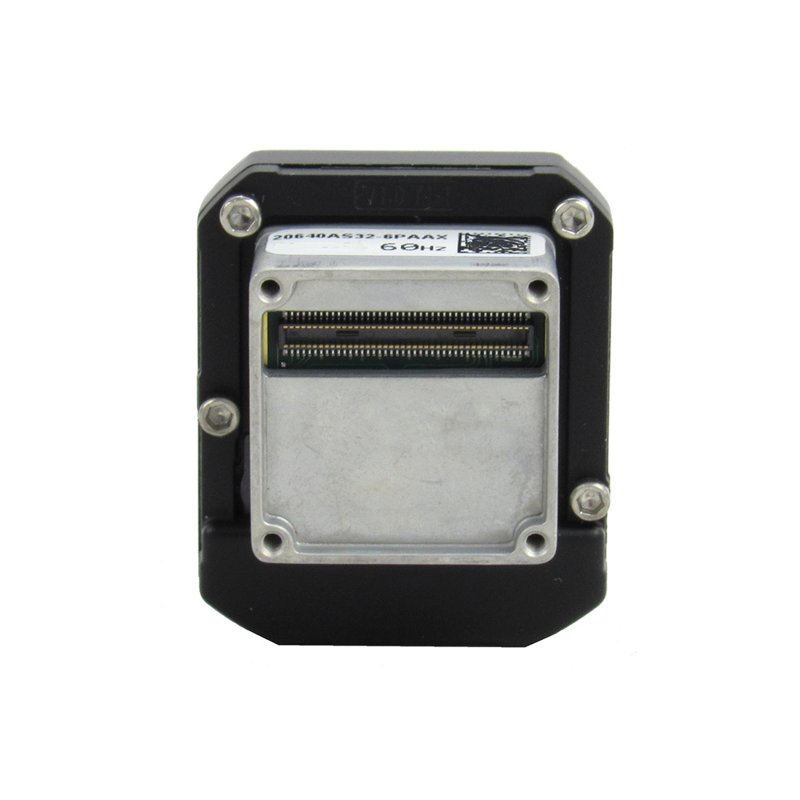

Four tapped M1.6 x 0.35 (rear cover). Lens support recommended when lens mass exceeds core mass. |
| Input Voltage | |
| Power Dissipation |
Varies by configuration. 320+ as low as 500 mW, 640+ as low as 1000 mW |
| Video Channels | |
| Control Channels | |
| Configurable GPIO |
Up to 11; user configurable |
| Operating Temperature Range | |
| Non-Op. Temp. Range | |
| Shock | |
| Operational Altitude |
12 km (max altitude of a commercial airliner or airborne platform) |
| Boson Enclosure Compatible |
